CNC CAT 3700L

Product code: 10-0024

Weight: 0 Kg
Measurement: τμχ

€ 21.000,00

VAT is not included (24%)

In stock (10-20 days)
Show shipping cost estimation

Description

CNC CAT 3700L

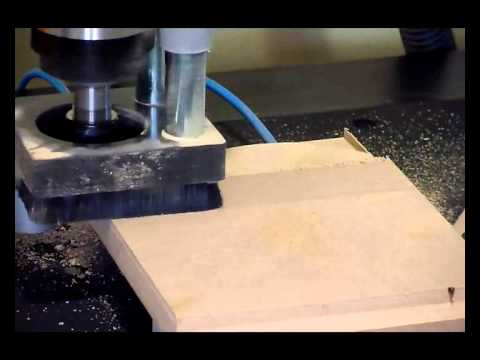

Floor-standing engraving and cutting CNC Router machine for milling and engraving (professional).

Working Area

3700mm x 1900mm 150mm (Length x Width x Height).

Table

Ply wooden Table (Vacuum Table option/or T-Slot aluminum table option).

Axes

3 axes (or 4 axes option)

Spindle

Water cooled spindle 2,2Kw 220V 400Hz.

Inverter for 2,2Kw Spindle Controlling from 1000 to 24000RPM via Software.

Motors and drivers

DC Step Motors and Drives (or Servo Motors and Drives Option).

Transmission System and Sliding

Rack and Pinions transmission system.

Full supported, chrome plated and hardened, precision round rails (100% rigid) and linear bearings for perfect stability and accuracy.

Electronic Cabinet

Metal electronics cabinet. The cabinet is embedded on the basis of the CNC machine, with ventilation system and filters. Sealing standard IP64

Speed Movement

≤10000mm/min

Cutting and Engraving Speed

The speed movement is 10m/min. However, the speed depends on the design, the material and the desirable quality. So, the cutting and engraving speed is a variable and non-calculable rate.

Dust and scrap collection system

Dust and scrap collection system, with passive height adjustment (extendable).

98% suction rate.

Semi automatic tool changing procedure.

Tool length sensor (tool probe), which is an automatic tool measuring system.

Cable Management

Drag Chain (X & Y axes)

Machine Protection

The mechanical parts, which are lubricated, are sufficiently covered and remote from the cutting surface, to prevent the deterioration caused by scraps and dust which sticks on them during the lubrication.

Controller

Up to 4 axes CNC USB Manual Pendant Remote Control.

Software

Mach 3(Greek version available without extra charge)

Warranty

1 Year

CE certified
