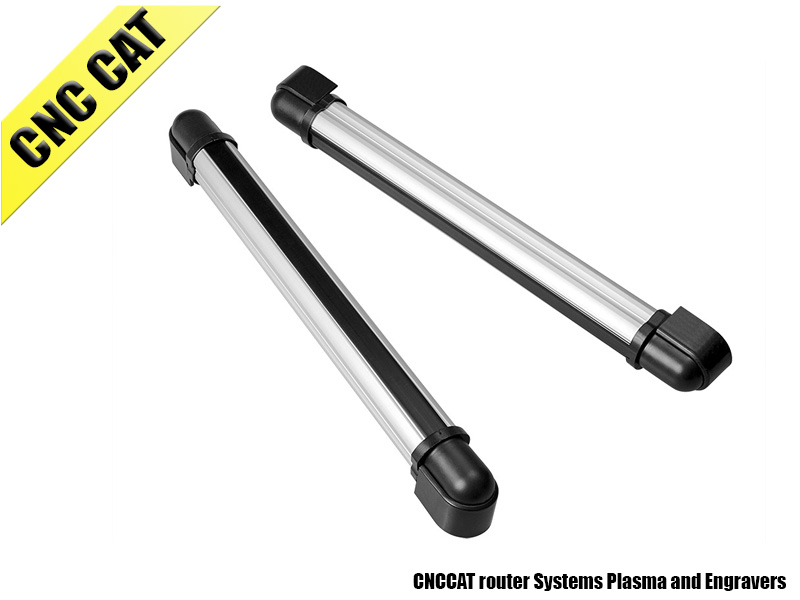

Multi-Beams Active Infrared sensor 10m-20m

Product code: 12-0388

Weight: 0.05 Kg
Measurement: τμχ

VAT is not included (24%)

Ιn stock

Readily available - (Quantity: 2)
Show shipping cost estimation

Στήλη 2 δεσμών ύψους 37cm

Εξωτερικού χώρου 10m – εσωτερικού 20m

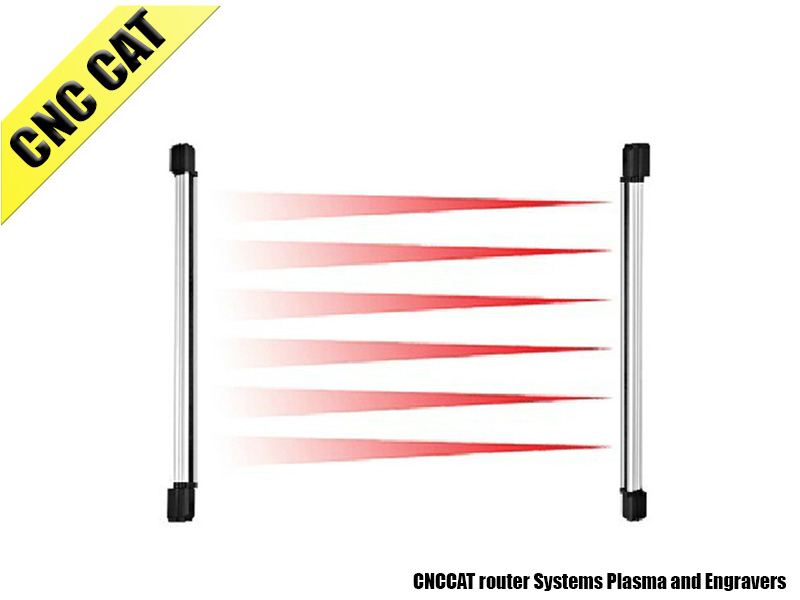

Για συναγερμό απαιτείται η ταυτόχρονη διακοπή 2 δεσμών

Model		5x / 10x / 20x / 40x / 50x
The number of beams		2 beam	3 beam	4 beam	6 beam	8 beam	10 beam
Height		408mm	528mm	708mm	1228mm	1628mm	2028mm
Working Voltage		DC10.5~18V
Current	Transmitter	15±3mA	20±3mA	22±3mA	40±3mA	47±3mA	58±3mA
	Receiver	40±3mA	42±3mA	44±3mA	46±3mA	48±3mA	50±3mA
Response Time		≤ 0.1
Relay Contact Capacity		1C, 30V AC/DC, 0,5 Amax
Environment		-25°C ~ +55°C, RH ≤ 95%
Distance		5~40m
Alarm Output		Wired, Wireless
Relay Action Time		Open Time ≥ 1.5s
Adjustable Angle		Horizontal 180° (±90)
Material		PC plastic and aluminum alloy
