CNC CAT-HF3720 ATC
Product code: 10-0270
Weight: 250 Kg
Measurement: τμχ
VAT is not included (24%)
In stock (15-30 days)
Show shipping cost estimation
Weight: 250 Kg
Measurement: τμχ
From € 28.000,00
VAT is not included (24%)
In stock (15-30 days)
Show shipping cost estimation
Description
Please note that CNC CAT can customize machines to meet your specific needs. Contact us to discuss your requirements and request a quote.
Heavy Frame floor engraving and cutting machine (for professional use)
Machine Materials
Construction of heavy-duty industrial aluminum and steel
Cutting dimensions
3700mm x 2000mm x 180mm ( Path Z : 240mm)
Working Surface
Specially designed vacuum-based working surface with 6 zones for easy holding of small and large material surfaces.
Vacuum Pump
Air-cooled vacuum pump 5.5Kw.
Cutting Tool
4.5kw router with speed control from 5.5kw inverter, via software.
Tool Change
Automatic tool change system (ATC), with a 10-position steady parking system and 6 cones with the corresponding collets.
Sliding
Full supported high-stress linear square rails and bearings on all axes.
Drive Transmission
X, Y axes: helical gears-racks.
Z axis: with zero-backlash ball screw.
Motors and Drivers
Servo motors for all axes, with a driver for each motor.
Homing
Terminals - homing, inductive switches on all sides.
Cable management
Plastic cable drag chains on X and Y axes
Controller
Ethernet motion control board
Electronics
Metal electronics cabinet integrated into the base of the machine with ventilation, filters, and sealing specification.
Emergency stop button (ESB)
Emergency stop button is used to immediately stop the machine in case of an emergency.
Computer
Refurbished brand-name laptop with CNC software installed, genuine Windows operating system and AnyDesk remote support capability.
The computer is provided solely for operating the machine software, not for designing models.
Software
Mach3, CNC software
Training
Video tutorials of the machine's software, in Greek, with a total duration of 2 hours.
Features
• Automatic tool measurement system.
• Automatic activation of the dust and chip extraction system, pneumatically controlled in height.
• Manual oil lubrication system.
Warranty
2 years
Complies with CE specifications
Please note that CNC CAT can customize machines to meet your specific needs. Contact us to discuss your requirements and request a quote.

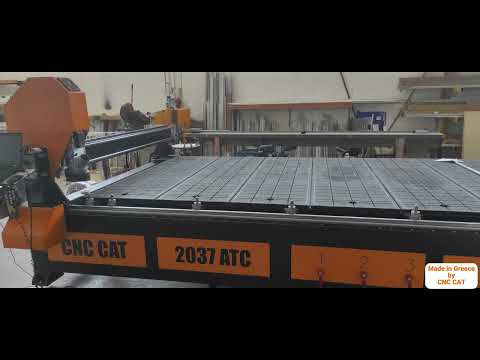

CNC CAT-3720 ATC
