Aluminium Industrial Profile 20x40 Slot 6 100mm

Product code: 20-0172

Weight: 0.073 Kg


€ 0,69


Price per meter: €6,93
VAT is not included (24%)


        Readily available - (Quantity: 3.827)
Show shipping cost estimation
Description

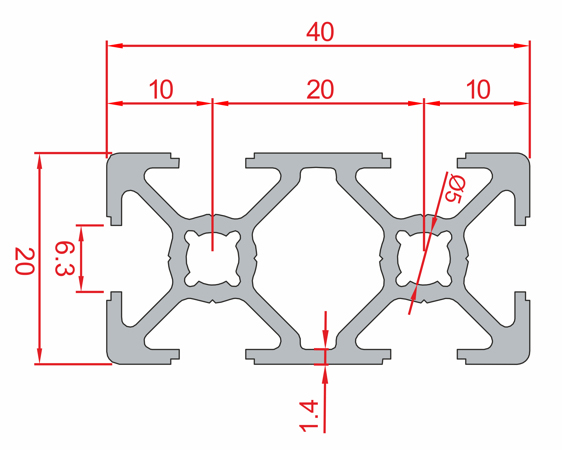

Profile 20x40

The price is for 100mm long bar. You can specify the cut dimensions according to your needs during checkout.

 Size
 20mm x 40mm
 Slot width
 6mm
 Weather resistance
 Durable
 Mass
 Volume
 0,73Kg/m
 2,6cm2
 Ix  Iy
 4,17cm4
 1,12cm4
 Wx
 Wy
 2,08cm3
 1,12cm3
 Material  Alloy
 Aluminum  6060

The aluminium profiles fit perfectly with additional hardware such as connectors, hammer screws or cross-connect

3D File


You can view the product in 3D view.
The file is available only for users.

(If you dont see the file, please go to My account first)
