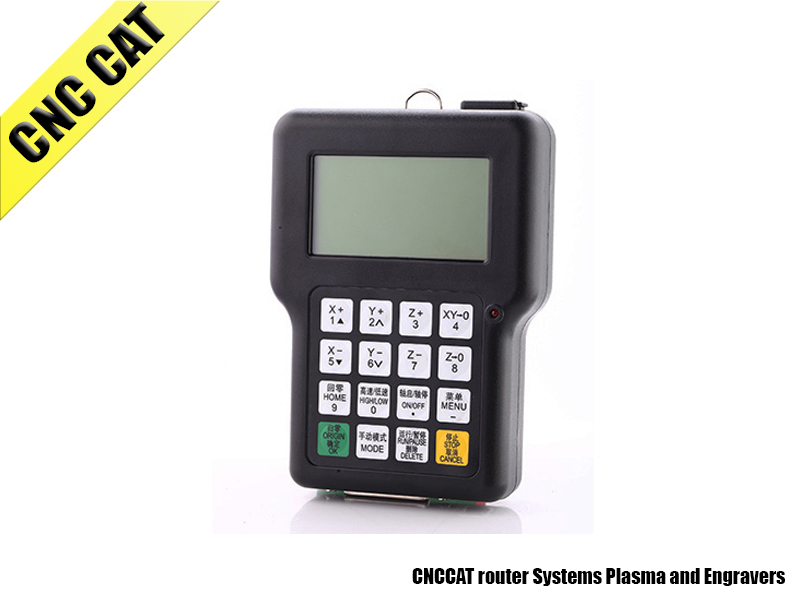

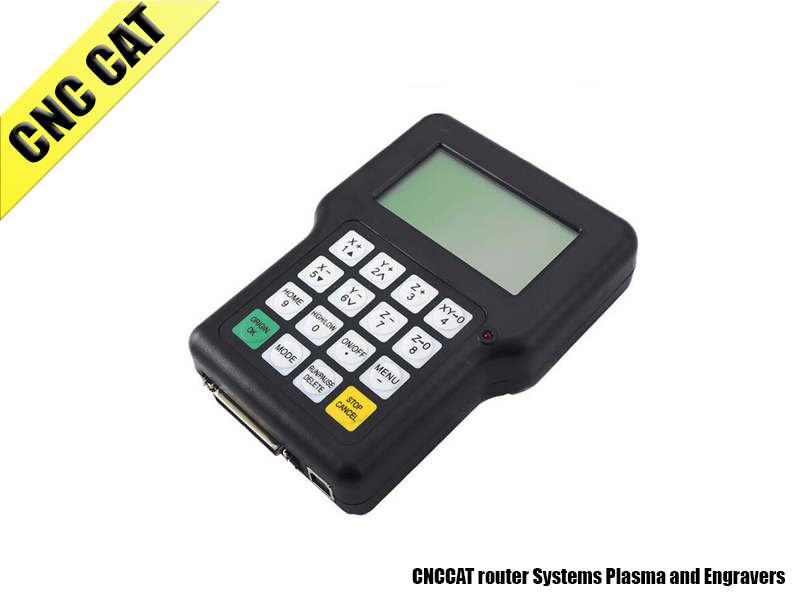

3 Axis DSP Controller for CNC Router

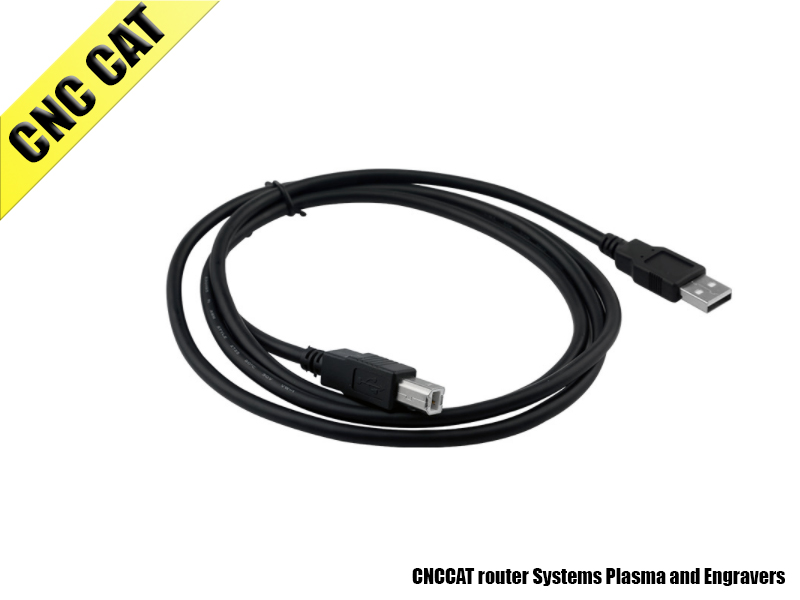

DSP Controller for CNC Router_cable1.jpg

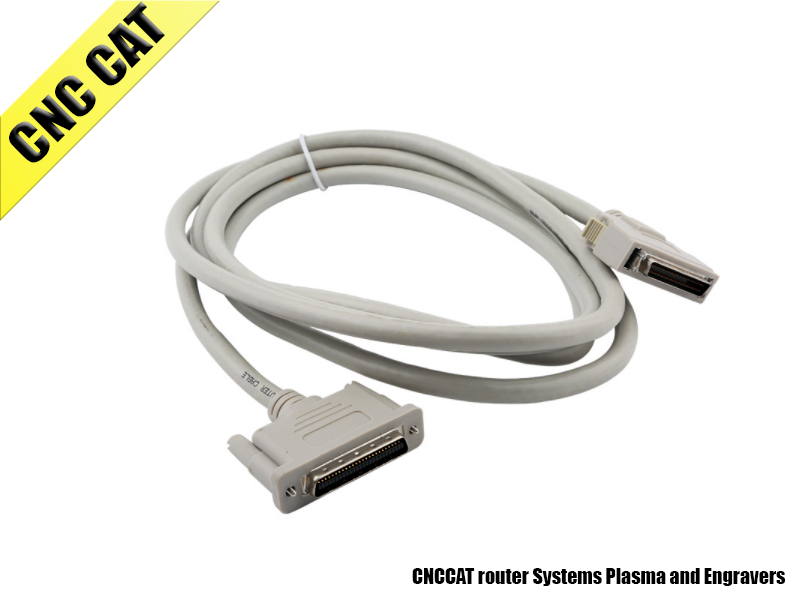

DSP Controller for CNC Router_cable2.jpg

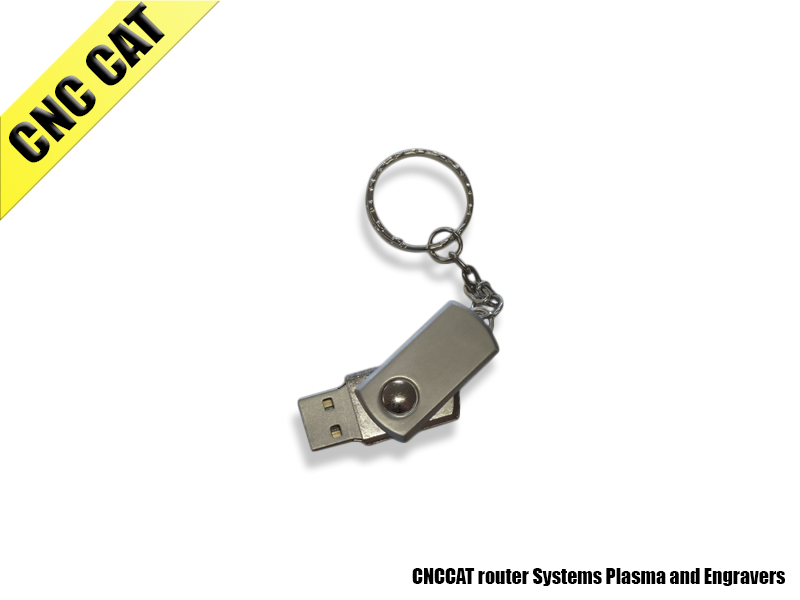

DSP Controller for CNC Router_USBstick.jpg

Product code: 12-0373

Weight: 0.8 Kg
Measurement: τμχ

€ 388,00

VAT is not included (24%)

In stock (7-14 days)
Show shipping cost estimation

Description

Specification:

Processor

160M DSP

File Memorizer

128M memorizer inside, it supports file

with any size because of adopting mobile

memorize technology

Display

LCD with 128 dot*64 dot

Communication Terminals

USB terminal and U Disk
File Format

G code , PLT files (optional)

Axes

3 axes
Help Function

Useful help information and guide
Languages

Chinese, English, Russia, France, Japanese

(optional or customize)
Operating Interface

Friendly Buttons and Menu Drive

Drive System

Step Motors
Interpolation function

linear, curve

Cutter Adjusting function

Yes
Spindle Control Function

Yes
System Data Inspect Function

Yes
Processing Data Inspect Function

Yes
Processing Position Adjusting Function

Yes
Multi Working Coordinates

It has 9 working coordinates
Stop Point Reprocessing Function

Yes
Copy Processing Function

Yes
Data protection when power off

Yes
Working Temperature

0C to +70C
Humidity

<90 no dew no frost
Outer Voltage

5 V
Consumptions

2 W
Dimensions(mm)

156x110x38

Features:
Totally independent from PC platform;
Directly read files from U Disk;
Easily process G code or PLT file with super size;
Strong system and process file examining function;
Easy to update system program;
It supports high micro step which makes precise and fast process possible;
Support to process part of the file;
Reliable data protection and recover function;
Friendly operating interface

Cautions:
- Dont use this product in strong magnetic filed or interfere environments
- Dont PnP U Disk while it is running a file.- Protect it from water, moist, dust and fire.
- Protect it from metal materials getting into the cover.
- Forbad to open the cover, there is no any user maintainable parts inside.
- Plug U Disk and other lines gentle.

Package includes:
- 1 x 3 Axis DSP
- 1 x USB cable
- 1 x 50 pin Data cable 2.5m
- 1 x Interface board
- 1 x Manual
