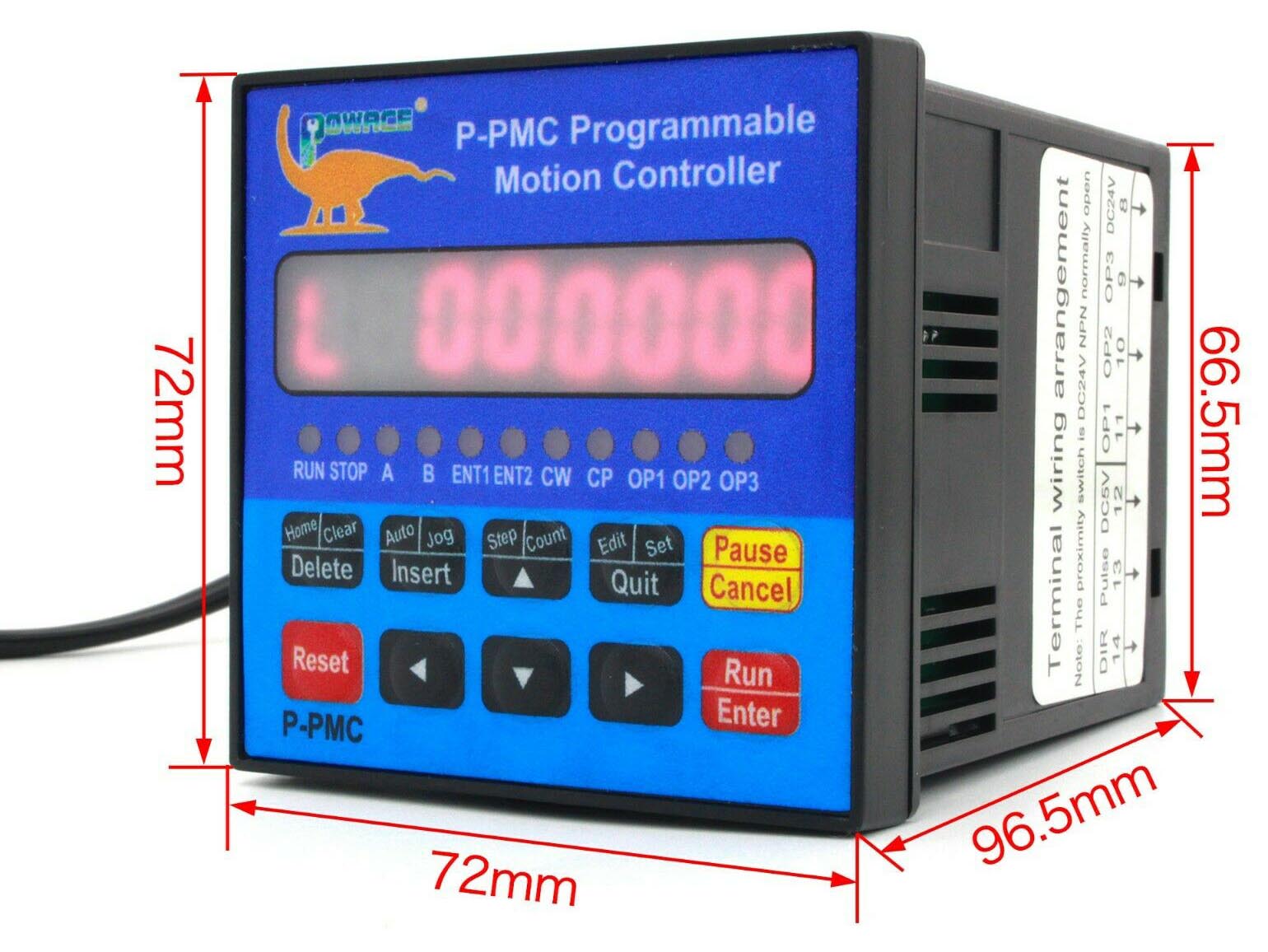

1 Axis Motion Programmable Controller for Servo or Stepper Motor 40KHz PMC
Product code: 12-0560
Weight: 0.303 Kg
Measurement: τμχ
VAT is not included (24%)
In stock (15-30 days)
Show shipping cost estimation
Weight: 0.303 Kg
Measurement: τμχ
€ 74,00
VAT is not included (24%)
In stock (15-30 days)
Show shipping cost estimation
Description
|
Maximum output frequency: 40KHZ
Output frequency resolution: 1Hz
Programmable maximum number of rows: 99
Signal input: 6 (optical isolation)
Signal output: 3 (optical isolation)
A continuous displacement range: -7,999,999 ~ 7,999,999;
Operating state: Auto-run mode, manual operation, the program edit mode, parameter setting status
Lifting speed curve: 2 (optimization)
Display digits: 8 digital display, manual / automatic status display, run / stop status display, the number of steps / counts / procedures display, edit the program, parameter display, input / output status display, pulse and direction display
Auto-run feature: You can edit, you can control the start and stop operation ect. automatically through the panel buttons and adding switches that connected to the back of the terminals
|
 |
|
Manual operation functions: position adjustment (manual jog speed and jog the number of steps can be set)
Parameter setting function: Starting frequency, acceleration and deceleration curve, reverse clearance, manually run length, manual speed, back to zero speed and interrupt jump the line all can be set
Program editing functions: You can insert, delete, modify the program. The controller can identify the error Instruction
Return to Zero features: It can return to zero from the positive and negative directions automatically
The number of programming instructions: 14
External operating functions: interrupt operation through parameter setting and add switches that connected to the terminals A and B
Power supply: AC220V±15%
|
|
