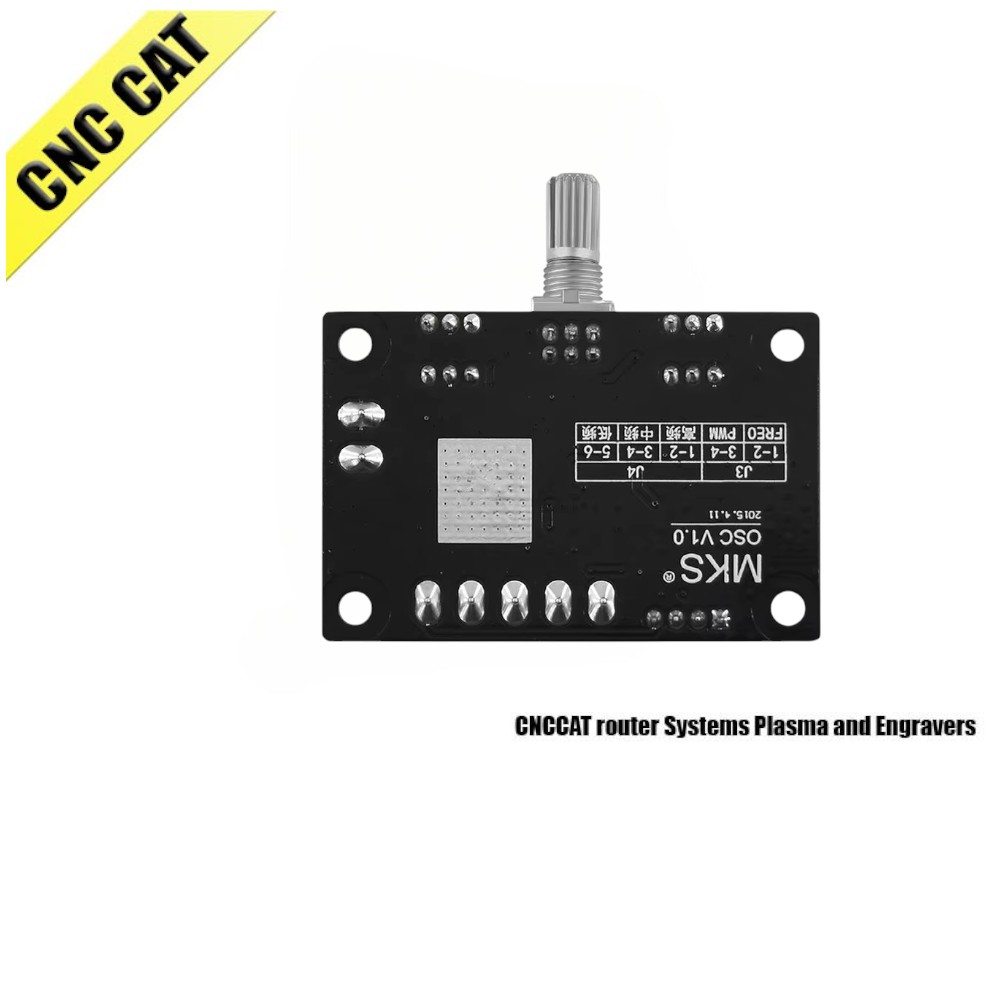

Stepper Motor Driver Mainboard

Material: PCB

Size: As shown

Color: Black

Features:

1.this module is a pulse generation module, supply the control signal to stepper driver.To control the stepper motor, it must be equipped with a drive.

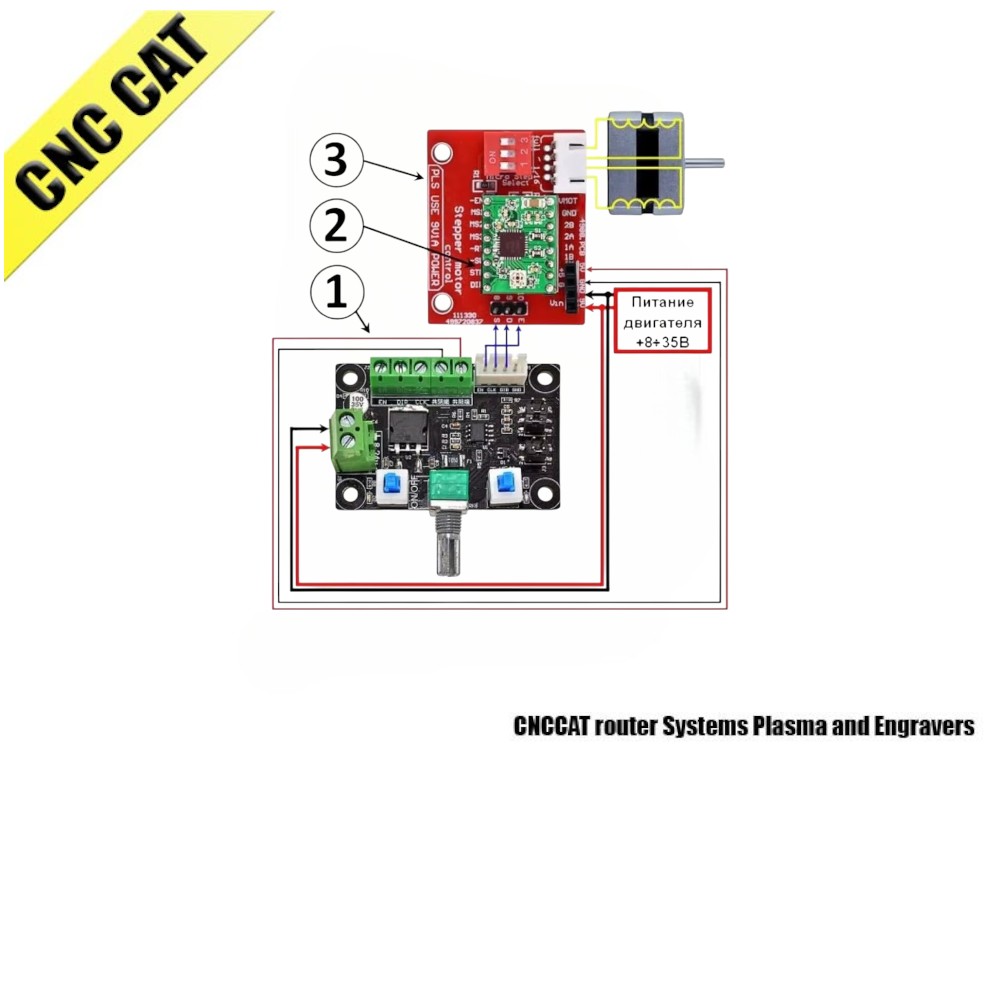

2.this simple controller + stepper motor + stepper motor + DC power supply can be composed of a simple set of control platform.

3.the controller has high 5.4k-160khz, middle 540-16.6khz, low 80-2.4khz total of 3 kinds of low frequency signal can be used to select the jumper.

4.can produce pulse signal, can also produce PWM signal, can choose the jumper.

5.the frequency of measurement: PUL and common cathode end.
