CNC CAT-HF1012
Product code: 10-0417
Weight: 250 Kg
Measurement: τμχ
VAT is not included (24%)
In stock (7-15 days)
Show shipping cost estimation
Weight: 250 Kg
Measurement: τμχ
From € 1,00
This product does not support Cash On Delivery
VAT is not included (24%)
In stock (7-15 days)
Show shipping cost estimation
Description
Please note that since CNC CAT is a manufacturer of CNC machines and automation systems, it is possible to add additional functions and systems and generally make modifications according to your needs. Please contact us to discuss in detail and request a quote.
Heavy Frame floor-standing engraving and milling CNC Router machine (professional use)
Construction
Mixed construction, from heavy type industrial aluminum and steel.
Working Area
1200mm x 1200mm x100mm (Length x Width x Height)
Table
T-slot Aluminum Table.
Spindle
Water-Cooled Motor Spindle 4.5KW.
Water-Cooled Motor Spindle 4.5KW.
Inverter for the 3KW Spindle Controlling from 1000 to 24000 RPM
Collet Type: ER20
Motors and drivers
Servo Motors and Drives (or Servo Motors and Drives Option)
Transmission System
Ball screw transmission on X, Y & Z axis (low backlash)
Full supported square rails with linear bearings
Speed Movement
≤4000mm/min
Cutting and Engraving Speed
The speed movement is 4m/min. However, the speed depends on the design, the material and the desirable quality. So, the cutting and engraving speed is a variable and non-calculable rate.
Dust and scrap collection system
Dust and scrap collection system, with passive height adjustment (extendable).
98% suction rate.
Semi automatic tool changing procedure.
Tool length sensor (tool probe), which is an automatic tool measuring system.
Home
Terminals - home, inductive switches on the home side of each axis.
Cable Management
Drag Chain (X & Y axes)
Electronics Cabinet
Metal electronics cabinet. The cabinet is embedded on the basis of the CNC machine, with ventilation system and filters. Sealing standard IP64
Machine Protection
The mechanical parts, which are lubricated, are sufficiently covered and remote from the cutting surface, to prevent the deterioration caused by scraps and dust, which stick on them during the lubrication.
Emergency
Emergency stop button on the front of the engine.
Software
Mach 3(Greek version available, without extra charge)
Support
3 hours of remote support via TeamViewer
Machine dimensions
~1700mm x 1700mm x 1400mm
Warranty
2 Years
Extra Choices

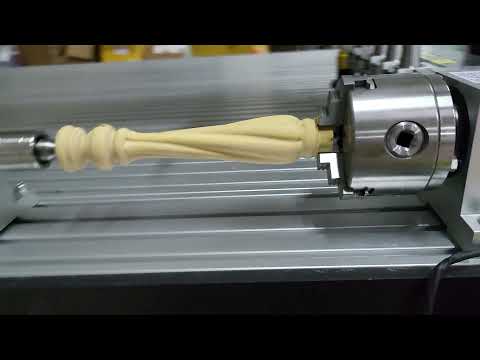

• 4th axis
• 4th-5th axis
CE certified
Please note that since CNC CAT is a manufacturer of CNC machines and automation systems, it is possible to add additional functions and systems and generally make modifications according to your needs. Please contact us to discuss in detail and request a quote.
