3D Sensor

Product code: 14-0709

Weight: 0.085 Kg
Measurement: τμχ

€ 150,00

VAT is not included (24%)

Ιn stock

Readily available - (Quantity: 1)
Show shipping cost estimation

Description

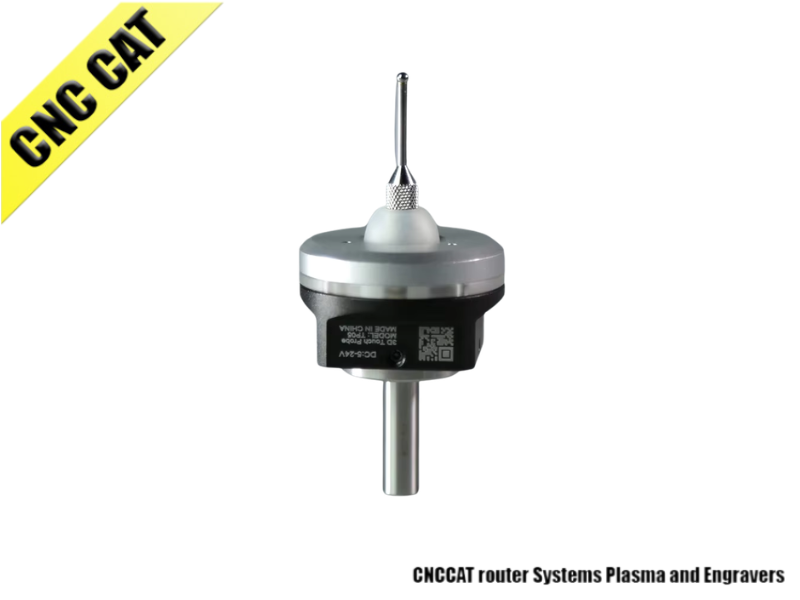

The 3d-Sensor is made to gauge surfaces. If the probe tip is touched from the bottom or from the sides, it gives a switch signal. The 3D-Sensor has, without touching the probe tip, electric continuity at both connecting wires (1). As soon as it switches, the contact is opened. The probe tip (2) is fixed by the integrated collet (3) and the coupling ring. Probe tips with a diameter of 2.0 mm can be clamped. On the top side there is a clamping pivot with a diameter of 8.0 mm (4).

It can be fixed directly in a collet chuck of milling spindle. With the aid of the grub screw (5) in the clamping pivot, you can set the elastic force of the 3D-Sensor.

Screw in = The elastic force increases.

Screw out = The elastic force decreases.

Technical data:

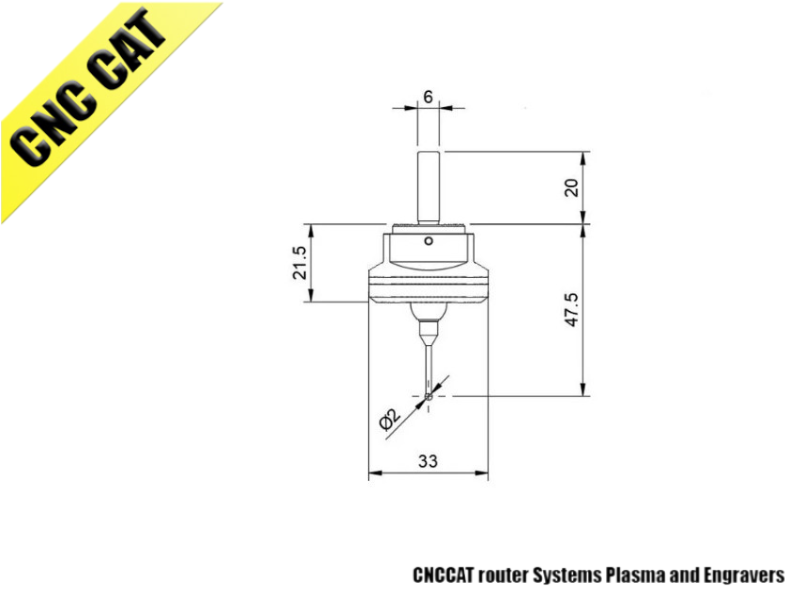

Dimensions	Ø 44mm, length: 53(exl. probe tip)
Probe tip	Ø 2mm, length: 45 with temp. steel ball
Fixation plug	Ø 8mm, length: 15mm
Material	Aluminum 7075, anodized
Switch contact	Opener, all contacts gold-plated
Sensing power	From 0.5N - 2.N(adjustable)
Repeat accuracy	0.01mm
