Aluminium Industrial Profile 40x80 Slot 10 100mm
Product code: 20-0022
Weight: 0.22 Kg
Measurement: 100mm
VAT is not included (24%)
Readily available - (Quantity: 3.053)
Show shipping cost estimation
Weight: 0.22 Kg
Measurement: 100mm
€ 2,90
This product does not support Cash On Delivery
VAT is not included (24%)
Readily available - (Quantity: 3.053)
Show shipping cost estimation
Description
The price is for 100mm long bar. You can specify the cut dimensions according to your needs during checkout.
To place your order correctly:
• As you can see in the title of the products, their price is for 100mm (10cm).
• To order 300mm(30cm) you should add quantity 3.
To order 1000mm (1m) you should add quantity 10 etc.
• If you want us to cut the product to specific dimensions, add comments of your order.
(e.g. if you have chosen a quantity of 10 (i.e. a total of 1000mm (1m) you can write us in the comments that you want 2 pieces of 500mm).
•The comments field will appear just before you complete your order.
High quality aluminum rail suitable for all types of installation as infrastructure for PV installations in walls, roofs, terraces and outdoor for the frame structures (e.g. glass) suitable for high stability. It is mostly used in the production of cabs of machine and its devices, displays, stands and billboard types.
It may be preferred in constructions where high durability is not needed.It can be used in lightweigt chassis,large cabinet applications and feet of conveyor chassis.
|

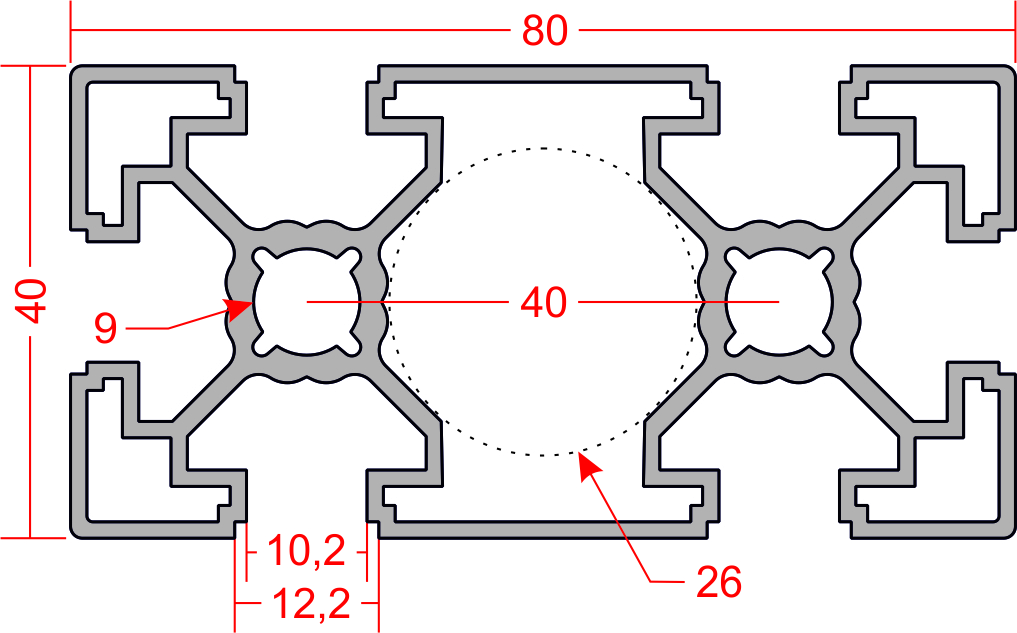

Size
|
 |
|
|
40mm x 80mm
|
||
|
Slot width
|
||
|
10mm
|
||
|
Weather resistance
|
||
|
Durable
|
||
|
Mass
|
Volume
|
|
|
2,07Kg/m
|
7,67cm2
|
|
|
Ix
|
Iy
|
|
|
49,98cm4
|
13,13cm4
|
|
|
Wx
|
Wy
|
|
|
12,49cm3
|
6,56cm3
|
|
|
Material
|
Alloy
|
|
|
Aluminum
|
6060
|
|
The aluminium profiles fit perfectly with additional hardware such as connectors, hammer screws or cross-connect
3D File
You can view the product in 3D view.
The file is available only for users.
 |
